RL ACF glue/AC-7206U/1.5MM*50M

4,000.00 ৳ 4000.0 BDT 4,000.00 ৳

4,000.00 ৳

    This combination does not exist.

    Add to Cart

    Share this product:
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Video outgoing-inspection:
    Machinery Test Report:
    Not Available
    Marketing Type:
    New Product 2020
    Warranty of core components:
    1 Year
    Core Components:
    PLC, Motor
    1 Year
    After-sales Service Provided:
    Free spare parts, Video technical support, Online support, No overseas service provided
    After Warranty Service:
    Video technical support, Online support, Spare parts
    Local Service Location:
    Applicable Industries:
    Manufacturing Plant, Machinery Repair Shops
    Showroom Location:
    Egypt, Turkey, Viet Nam, Brazil, Pakistan, India, Mexico, Russia, Thailand, South Korea, UAE, Ukraine, Uzbekistan, Malaysia, Australia, Morocco
    Adhesive Type:
    Hot Melt
    Repair LCD Screen
    Storage Temp:
    -10 ~ 5 ℃

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    20X10X5 cm
    Single gross weight:
    2.000 kg
    Package Type:
    Packing Method: antistatic bag + bubble bag + foam box + carton
    Picture Example:
    Lead Time:
    Quantity(Pieces)1 - 1000>1000
    Est. Time(days)15To be negotiated
    Product Description

    Anisotropic Conductive Film (ACF Tape / ACF Film)

    ACF Tape is normally made up of two main components, namely Adhesive & conductive particles.


    The adhesive composition is dependent on the materials being assembled. This means an ACF designed for use in a flex-on-glass (FOG) assembly is usually not suitable for use in a chip-on-glass (COG), FOB, or any other configurations. It is specific to the application for which it is designed for.
    ACF Conductive Particles
    Conductive particles are used to conduct electricity from one side of the bond to the other. Depending on the application, conductive particles range from 3.5μm to 30μm in size, and can be made from Nickel-gold plated polymer spheres, gold plated nickel particles, or lead-free solder materials. Particles may be individually coated with a outer polymer to insulate them from other uncrushed particles, but which will crack open and allow electrical conduction if the particle is trapped and crushed between two pads during assembly.

    Detailed Images

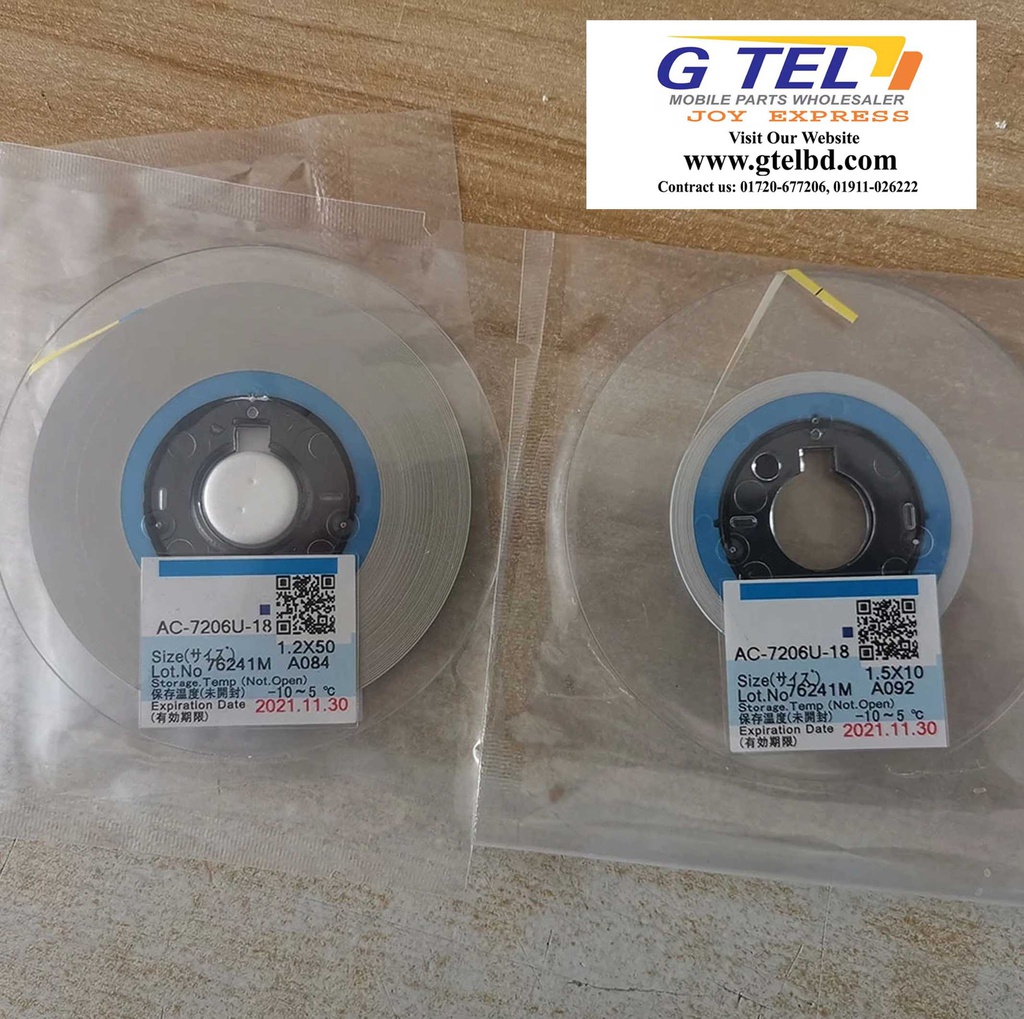

    Model Number: AC-7206U-18

    Size: 1.5(mm)*50(m)

    Storage Temp: -10 ~ 5 ℃

    Expiration Date: 6 months

    Packing & Delivery
    Related Products

    ACF (Anisotropic Conductive Film) Tape

    Model Number: AC-2056RK-35

    Size: 2.0(mm)*50(m)

    No Specifications
